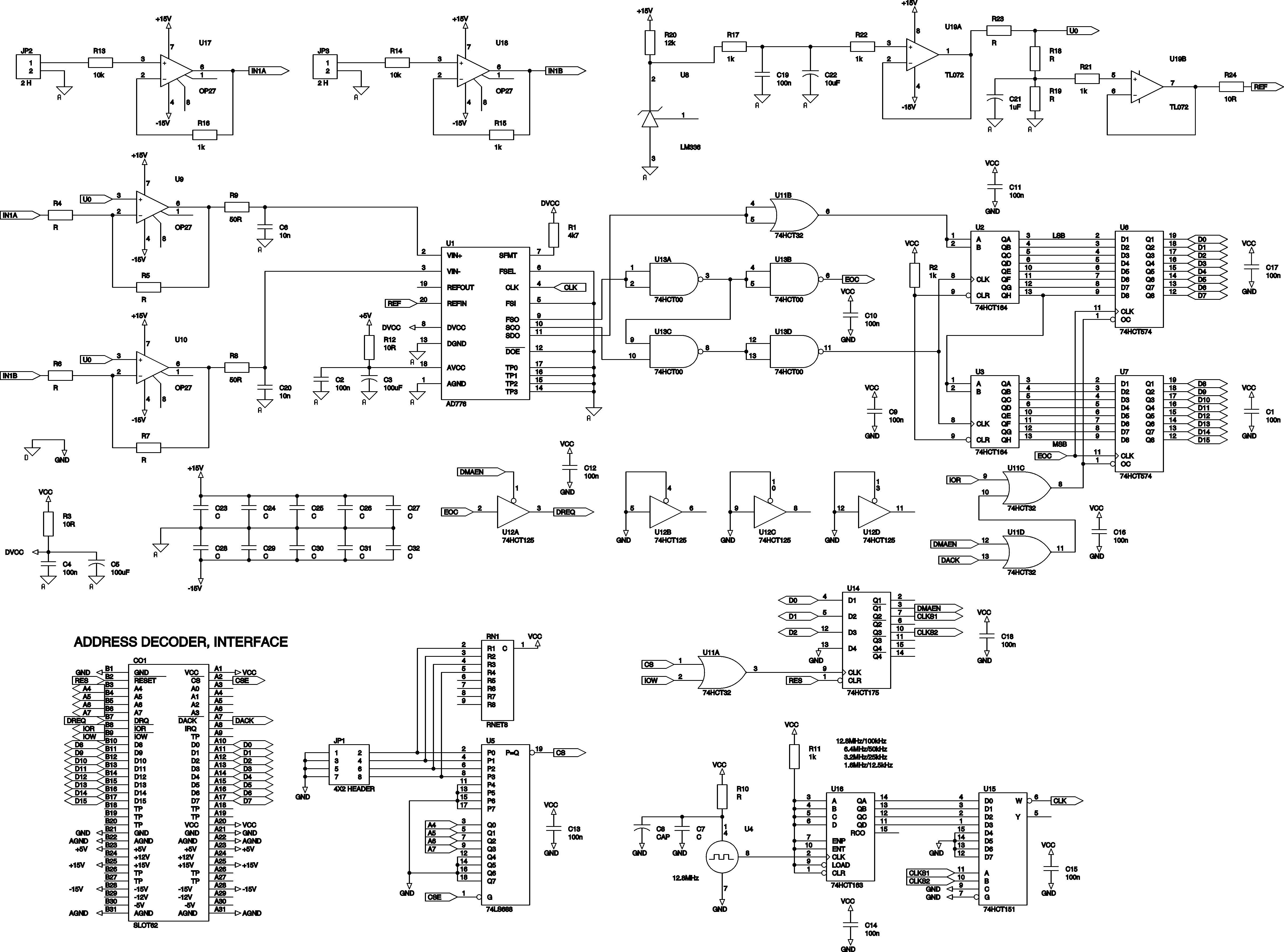

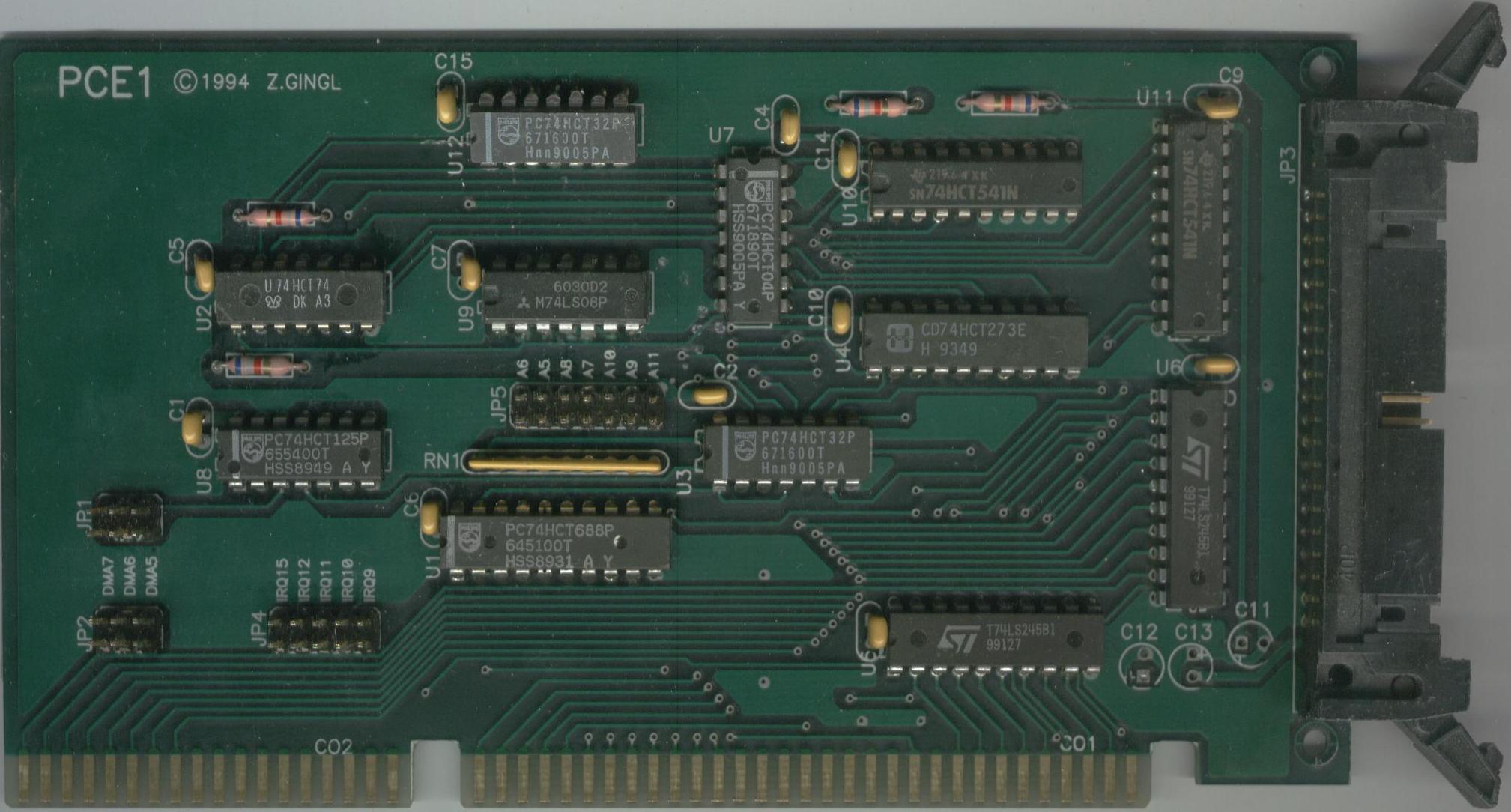

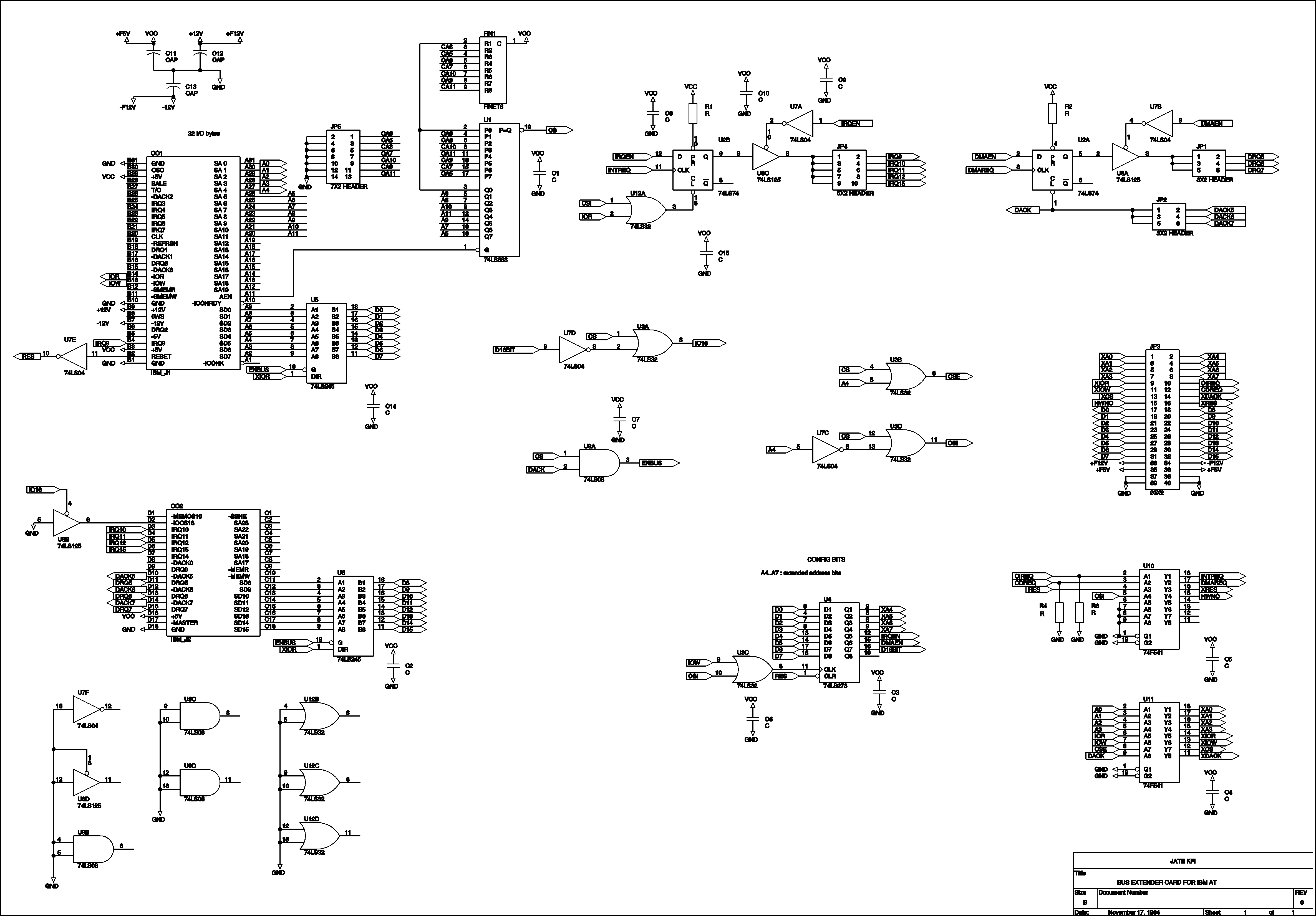

PCE 16-bit ISA bus card for control of the external system (schematics) PCM motherboard for plug-in cards (schematics) Measurements are made with an AD776 16-bit sigma-delta ADC (schematics) the signal and noise amplitude are controlled with DAC08 8-bit multiplying DACs |
